Swagelok Leipzig | Berlin

Your Authorized Swagelok Sales and Service Center


Solutions as individual as your requirements

Benefit from our many years of experience in the development of fluid systems. Our specialists develop and visualize a customized solution in close cooperation with you.

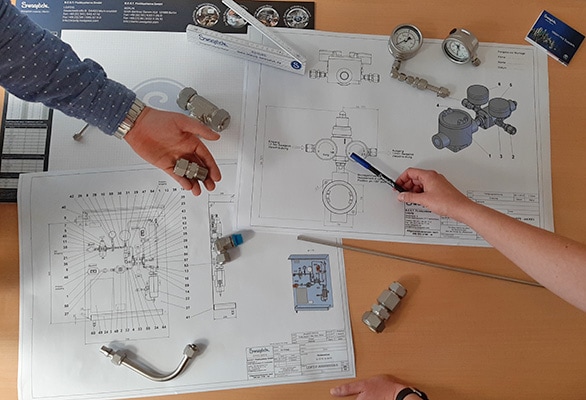

3. Planning and visualization: CAD visualization

Schritt 3: Planung

  • Development of a project plan
  • Elaboration of a CAD drawing with SolidWorks
  • Conceptual design of the automation technology
  • Preparation of parts lists
  • Revision of the visualization up to your release
  • Handover to the assembly department

Our certified employees develop and visualize your customer-specific solution with all individual parts or the corresponding flow chart using tools such as SolidWorks® and Visio.
For a detailed consultation just call us: 0341/945 471 0 or send us an e-mail by clicking on the following button:

Inquiry visualization
